Hydraulic Concrete Boom Placer from Jaypee: What It Does
The Jaypee® hydraulic concrete boom placer works together with a static concrete pump. The pump pushes the mix up through the pipeline, and the boom spreads it across the floor with a chute or end hose. Because pumps have limits on how high and how far they can push, putting the placer at a good vantage point helps the pump work at its best and speeds up the job.
Good pipe layout matters too. When the engine power of the pump and the placement of the pipes are well matched, friction drops and the placer works more effectively.
Concrete Boom Placer Machine: Key Features
Think of the concrete boom placer machine as an extra pair of long, steady arms on the slab. A few things set Jaypee’s placer apart:
- No floor fixing needed. It does not have to be bolted or mounted to the floor.
- Moves with the job. A tower crane lifts it from one position to the next on the slab.
- Multiple pour points. You can place concrete at several spots in a single day.
- Hydraulic arms. Concrete can be poured on walls, columns and floors.
- Full-circle coverage. The boom articulates through 360°, giving even distribution across the site.
- Easy handling. It is simple to install, dismantle and transport.
The hydraulics are tested and the build is robust, and strict quality checks help it perform reliably over a long working life.

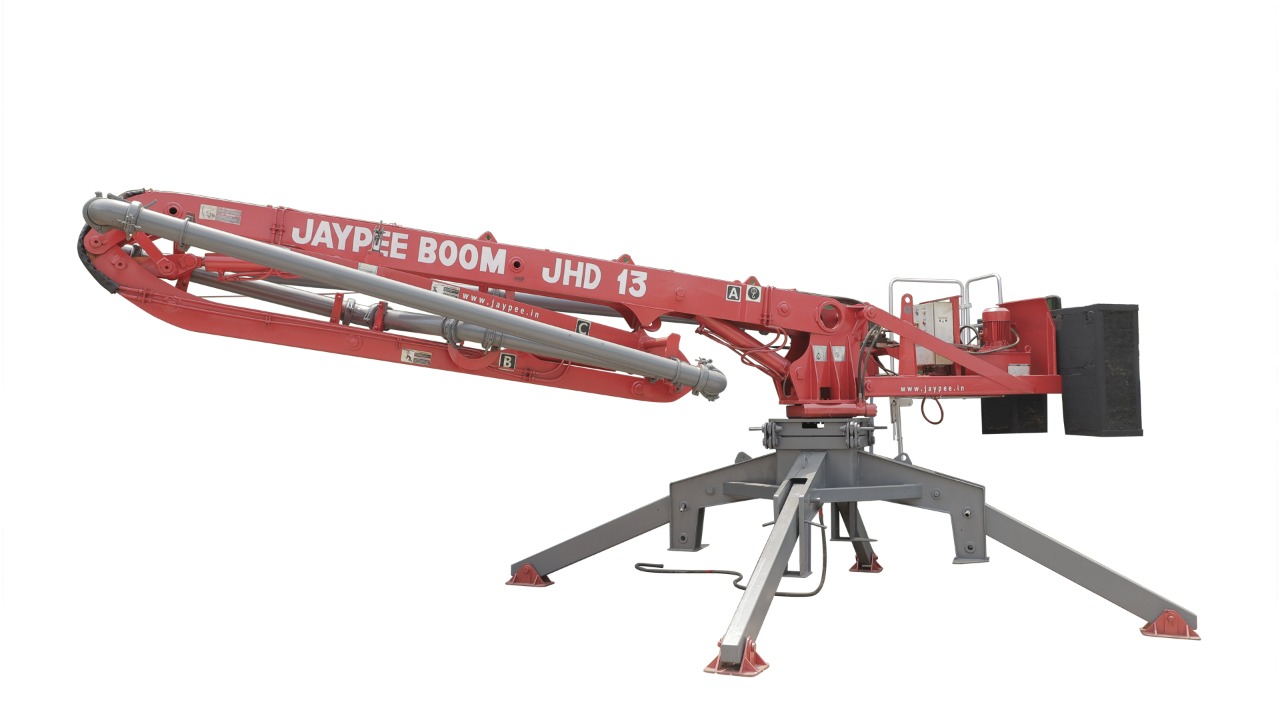

Technical Highlights of the JHD13 Model
The BHD 13 R model is a mid-size unit, which suits residential towers and commercial buildings. Its main specifications are as follows:
| Parameter | Detail |
| Maximum placing radius | 13 m |
| Maximum working height reach | 15,300 mm |
| Slewing range | 360° maximum |
| Delivery pipeline diameter | 125 mm (5 inch) |
| End hose length | 3,000 mm |
| Boom sections | 3 (5 m, 4 m and 4 m) |
| Motor power | 4 kW |
| System pressure | 28 MPa |
| Oil tank capacity | 80 litres |
| Weight (without counterweight) | 2,950 kg |
| Counterweight | 1,500 kg |
| Control options | Cable or radio remote |
The first section articulates from 0° to 87°, and the second and third sections swing from 0° to 180°. This folding range lets the operator reach into tight corners and around obstacles. Radio remote control keeps the operator at a safe distance with a clear view of the pour.
Why Contractors Prefer a Boom Placer
- Faster Pours, Less Labour
With a placer, a small crew can do work that otherwise needs a lot of people hauling and spreading concrete. The pour finishes sooner, and fresh concrete is less likely to start setting before it is placed.
- Better Quality Control
Even distribution and controlled placement reduce segregation and cold joints. That means a stronger, cleaner structure.
- Safer Site Operation
Fewer workers handle wet concrete near edges, and the remote control keeps the operator away from the boom’s reach. For high-rise work, that is a real safety gain.
Choosing Among Concrete Boom Placer Manufacturers in India
When you compare concrete boom placer manufacturers in India, look beyond the price. Ask how long the company has been building equipment, how it tests hydraulics, and whether spares and service are easy to get.
Jaypee India Limited builds a full line of construction equipment, from mixers and batching plants to hoists and rebar machines. It has a factory in Howrah and offices in Kolkata, Delhi and Mumbai. That network, along with a 24×7 hotline, means help is not far away when your project is on a deadline.
Where This Placer Works Best
- High-rise residential and commercial buildings
- Slab, column and wall concreting
- Sites with limited crane or pump reach
- Projects that need multiple pour points in a day
Planning your next high-rise pour? Click Get a Quote or call +91 90512 34444 and our team will help you pick the right setup.
Frequently Asked Questions
- What is a hydraulic concrete boom placer used for?
It delivers concrete from a pump to the exact pour location on a slab. It reaches walls, columns and floors that are hard to access otherwise.
- How far can the Jaypee boom placer reach?
The BHD 13 R model has a maximum placing radius of 13 metres and a maximum working height reach of 15,300 mm.
- Does the boom placer need to be fixed to the floor?
No. It needs no fixing or mounting. A tower crane moves it from one slab position to another.
- How is the machine controlled?
It can be operated through a cable remote control or a radio remote control.
- Can I use a boom placer without a concrete pump?
No. It works with a static concrete pump, which pushes the concrete through the pipeline to the boom.
